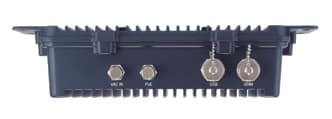

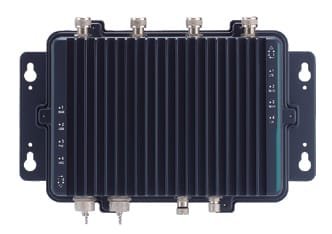

Rugged IP67-rated Fanless Edge System with NVIDIA® Jetson Xavier™ NX, 1 HDMI, 1 GbE
PoE, 1 USB and 100 to 240 VAC Power Input
The AIE800-904-F adopts the NVIDIA® Jetson Xavier™ NX platform which has a powerful 6-core NVIDIA Carmel ARM® v8.2 (64-bit) processor and 384-core NVIDIA Volta™ GPU. In addition to the superior performance and power advantage of accelerated computing, the AIE800-904-FL is designed with a high IP67 degree of protection from water and dust ingress. Moreover, it comes with a wide operating temperature range of -30°C to 50°C and a vibration endurance for up to 3Grms.
The NVIDIA Jetson-based outdoor edge AI system is the perfect platform for traffic management, city security, smart manufacturing, and more.
Specifications
- IP67-rating for outdoor use
- NVIDIA® Jetson Xavier™ NX with Volta™ GPU architecture with 384 NVIDIA CUDA® cores
- High AI computing performance for GPU-accelerated processing
- -30°C to +50°C operating temperature range
- 100 to 240 VAC wide range power input with 10kV surge protection
- 4 N-jack antenna openings with water proof design
- Features M12 lockable I/Os
- 1 IEEE 802.3at Gigabit LAN port (30W)
