Key features
- Thinner and lighter touch panel
- Multi-touch functionality
- Vertically Integrated supply chain
- Increase transmission rate and visibility
- Improve signal-to-noise ratio (SNR)

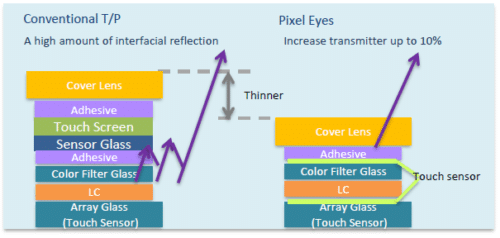

KOE developed an LCD module with integrated capacitive multi-touch functionality – Pixel Eyes, and has started to apply in industrial display and equipment. Conventional touch panels formed the transmitter (Tx) and receiver (Rx) layers on an external touch panel module. In Pixel Eyes, the Rx function is incorporated into the shielding layer on the colour filter substrate while the Tx function is incorporated into the common electrode on the TFT substrate. Thus, the touch panel function is integrated in the display. Since it eliminates the need for an external touch panel, thinner and lighter LCD modules are achievable. Furthermore, Pixel Eyes contributes to improvement of visibility by eliminating the discrete touch panel module.
Hectronic offers a wide range of std models with pcap touch and can also make customization from a yearly volume of 300+.
Standard PCAP Touch Series
Product listing
TX09D200VM0BPA
- Technology – TFT
- Mode – Transmissive
- Dimensions – 68.65 x 88.8 x 10.85
- Backlight – 70Khrs LED
- Features – Rugged+, IPS, Touchscreen
Data sheet – TX09D200VM0BPA
TX14D23VM5BPA
- Technology – TFT
- Mode – Transmissive
- Dimensions – 131 x 102.2 x 9.1
- Backlight – 50Khrs LED
- Features – 800 nits, Ultra Wide Viewing Angle, Touchscreen
Data sheet – TX14D23VM5BPA
TX14D28VM5BPA
- Technology – TFT
- Mode – Transmissive
- Dimensions – 131 x 102.2 x 9.1
- Backlight – 40Khrs LED
- Features – 800 nits, Ultra Wide Viewing Angle, Touchscreen, LVDS
Data sheet –TX14D28VM5BPA
TX17D01VM5BPA
- Technology – TFT
- Mode – Transmissive
- Dimensions – 153 x 118 x 10.2
- Backlight – 70Khrs LED
- Features – Compact, VGA, LVDS Interface, Touchscreen
Data sheet – TX17D01VM5BPA
TX17D02VM2CPA
- Technology – TFT
- Mode – Transmissive
- Dimensions – 153 x 118 x 10.2
- Backlight – 70Khrs LED
- Features – Compact, VGA, LVDS Interface, Touchscreen
Data sheet – TX17D02VM2CPA
TX18D200VM0EWA
- Technology – IPS TFT
- Mode – Transmissive
- Dimensions – 178.76 x 115 x 11.75
- Backlight – 70Khrs LED
- Features – IPS, Touchscreen
Data sheet – TX18D200VM0EWA
TX18D206VM0BPA
- Technology – TFT
- Mode – Transmissive
- Dimensions – 167.7 x 109.5 x 10.6
- Backlight – 70Khrs LED
- Features – Rugged+, IPS, SHB, LVDS Interface, Touchscreen
Data sheet –TX18D206VM0BPA
TX18D211VM0BYA
- Technology – IPS TFT
- Mode – Transmissive
- Dimensions – 167.7 x 109.5 x 10.6
- Backlight – 50Khrs LED
- Features – IPS, Touchscreen, USB I/F
Data sheet – TX18D211VM0BYA
TX20D34VM2BPA
- Technology – TFT
- Mode – Transmissive
- Dimensions – 189 x 120 x 9
- Backlight – 50Khrs LED
- Features – High Brightness, LVDS, Touchscreen
Data sheet –TX20D34VM2BPA
TX23D203VM0BPA
- Technology – IPS TFT
- Mode – Transmissive
- Dimensions – 218 x 135 x 12.65
- Backlight – 70Khrs LED
- Features – Rugged+, IPS, LVDS I/F, Touchscreen
Data sheet – TX23D203VM0BPA
TX26D200VM5BPA
- Technology – TFT
- Mode – Transmissive
- Dimensions – 230 x 180.2 x 12.2
- Backlight – 70Khrs LED
- Features – Super WVA, Touchscreen
Data sheet –TX26D200VM5BPA
TX26D207VM0AVA
- Technology – IPS TFT
- Mode – Transmissive
- Dimensions – 265 x 180 x 13.42
- Backlight –
- Features – Rugged+, IPS, High Brightness, USB-Touch
Data sheet –TX26D207VM0AVA
