Specification

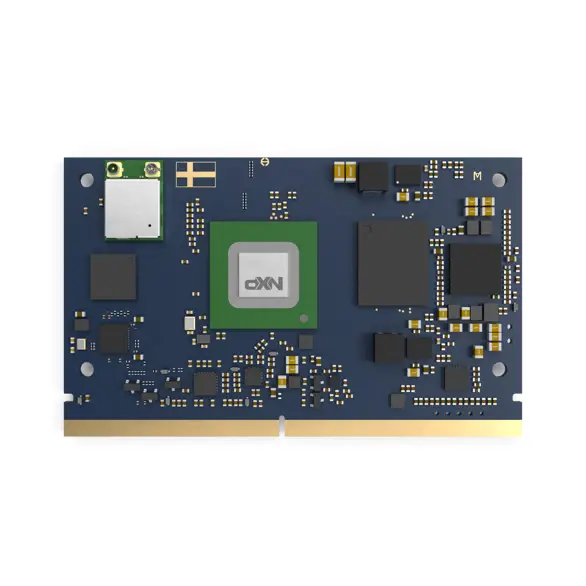

- SMARC 2.2 compliant
- NXP i.MX95 processor 4-6 ARM Cortex-A55 cores up to 1.8 GHz
- ARM Cortex-M7 Real Time core at 800 MHz
- ARM Cortex-M33 low power core at 333 MHz
- eIQ Neuron 2 TOPS Neural processor (NPU)
- ARM Mali-G310 Graphics processor (GPU)
- Video encoder/decoder (VPU) for up to 4Kp60 H.264 and H.265
- Up to 16 GB LPDDR5 memory on board
- Up to 256 GB eMMC storage on board
- Dual channel LVDS
- 4-lane MIPI-DSI
- HDMI
- 1x USB 3.0 Host and 1x USB 2.0 Host/Device ports
- 2x Gigabit Ethernet
- Up to 5x CAN-FD interfaces
- Optional Wi-Fi/Bluetooth wireless module
